Tank & access / Design study / STANDARD-PARTITIONS-R10
A closer look inside.
Layered partition fit studies for SUB1500 and SUB2000.
Retained development study. Dimensions, names and checks belong to this revision—not automatically to the retrofit-only product. Manufactured tank shells are deferred. No installation instruction, certification or manufacturing release is represented.
The source reasoning
Why this detail was investigated.
Separate skins, bonds, core and edge closeouts make the proposed construction visible. Transfer openings and connected pipework are not yet modeled; operating capacity and structural performance remain unverified.
Read the research and limits
Research record
The detail behind
the study.
Source-linked work for this revision. Reported checks describe the stated model or test; physical qualification and applicability to the current retrofit remain separate.
SUBFIELD / PARTITION FIT DEVELOPMENT

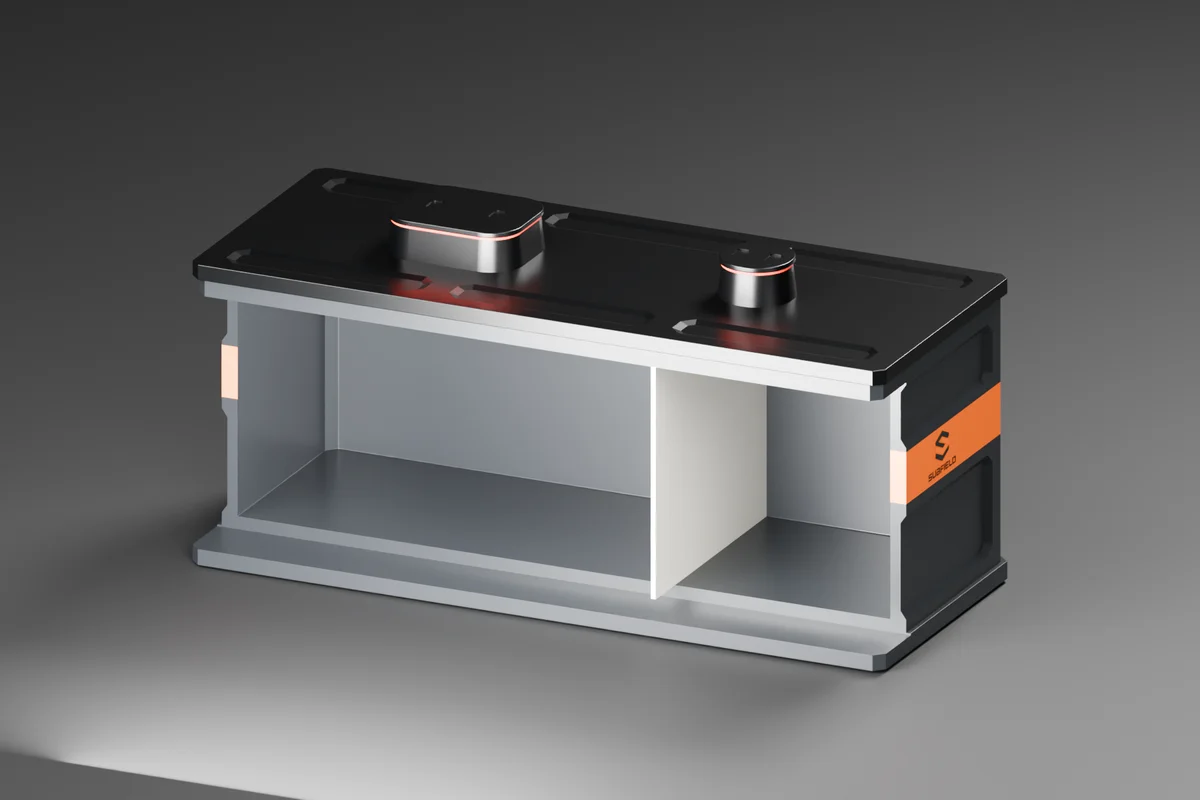

Separate face skins, bond films, core, solid closeouts and perimeter bond are now modeled. The 28.4 mm candidate stack and 2:1 length split are unqualified design assumptions. Light partition colors distinguish parts in this inspection view.
SUB1500
Partition displacement: 15.26 gal. Remaining volume above nominal target before other equipment: 153.39 gal at the study level.
Separate layers: perimeter-bond · primary-face · primary-bond · secondary-face · secondary-bond · closed-cell-core · solid-edge-closeout
SUB2000
Partition displacement: 15.26 gal. Remaining volume above nominal target before other equipment: 212.24 gal at the study level.
Separate layers: perimeter-bond · primary-face · primary-bond · secondary-face · secondary-bond · closed-cell-core · solid-edge-closeout
These are closed partitions without transfer openings or connected pipework. No operating hydraulic path or structural performance is established. Engineered variants are not integrated in this package.
Verification evidence · Exterior family
Source and revision record
Source: standard-partitions-r10/index.html
Source SHA-256: aebc086b1714ee350be67800dff66eea3d8a26d365eda296e088333385196584
Geometry and images describe this development revision. Current product ratings and manufacturing release require separate qualification.
